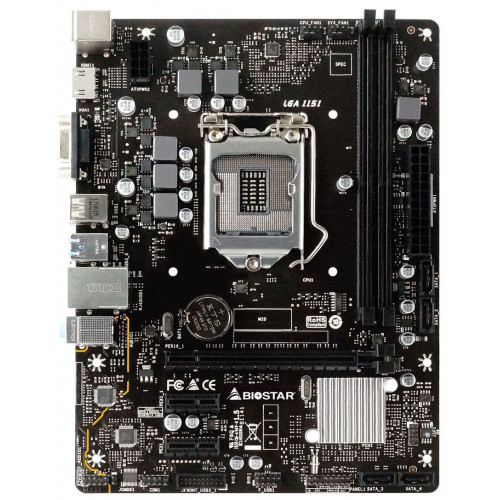

Мат. плата Biostar Socket 1151 LGA (H310MHP 3.0)

- Supports 9th & 8th Generation Intel Core™ Processor
- Intel H310 single chip architecture
- Supports Dual Channel DDR4 2666/2400/2133/1866 MHz up to 32 GB Memory
- Supports HDMI 4K resolution
- Supports GbE LAN
- Supports USB 3.2 Gen1

Чипсет: Intel H310

CPU SUPPORT
Socket 1151 for 9th / 8th Gen Intel Core, Pentium and Celeron processors
* 9th / 8th Generation Intel Core™ Processor Family only support 300-Series.

MEMORY
Supports Dual Channel DDR4 2666/ 2400/ 2133/ 1866
2 x DDR4 DIMM Memory Slot, Max. Supports up to 32 GB Memory
Each DIMM supports non-ECC 4/8/16GB DDR4 module

INTEGRATED VIDEO
By CPU model
Supports DX12
Supports HDCP

STORAGE: 4 x SATA III Connectors (6Gb/s)

LAN: Realtek LAN Chip 10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability
AUDIO CODEC: ALC897 7.1 Channels, High Definition Audio Support HD Audio

USB
4 x USB 3.2(Gen1) ports (2 on rear I/Os and 2 via internal header)
6 x USB 2.0 ports (4 on rear I/Os and 2 via internal header)

EXPANSION SLOT
2 x PCIe 2.0 x1 Slots
1 x PCIe 3.0 x16 Slot (x16 mode)

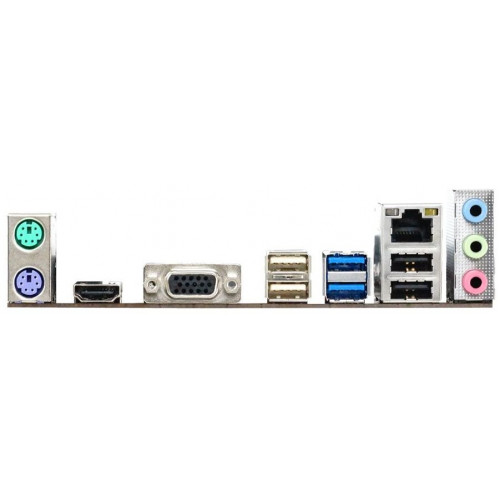

REAR I/O
1x PS/2 Mouse Port
1x PS/2 Keyboard Port
1 x HDMI Port
1 x VGA Port
1 x LAN Port
4 x USB 2.0 Ports
2 x USB 3.2(Gen1) Ports
3 x Audio Jack

INTERNAL I/O
4 x SATA III Connectors (6Gb/s)
1 x USB 2.0 Header (each header supports 2 USB 2.0 ports)
1 x USB 3.2(Gen1) Header (each header supports 2 USB 3.2(Gen1) ports)
1 x 8-Pin Power Connector
1 x 24-Pin Power Connector
1 x CPU Fan Connector
1 x System Fan Connector
1 x Front Panel Header
1 x Front Audio Header
1 x Internal Stereo Speaker Header
1 x Clear CMOS Header
1 x COM Port Header

H/W MONITORING
CPU / System Temperature Monitoring
CPU / System Fan Monitoring
Smart / Manual CPU Fan Control
System Voltage Monitoring

DIMENSION: Micro ATX Form Factor Dimension: 17.1cm x 22.6cm ( W x L )
OS SUPPORT: Supports Windows 10(64bit) / 11(64bit)
